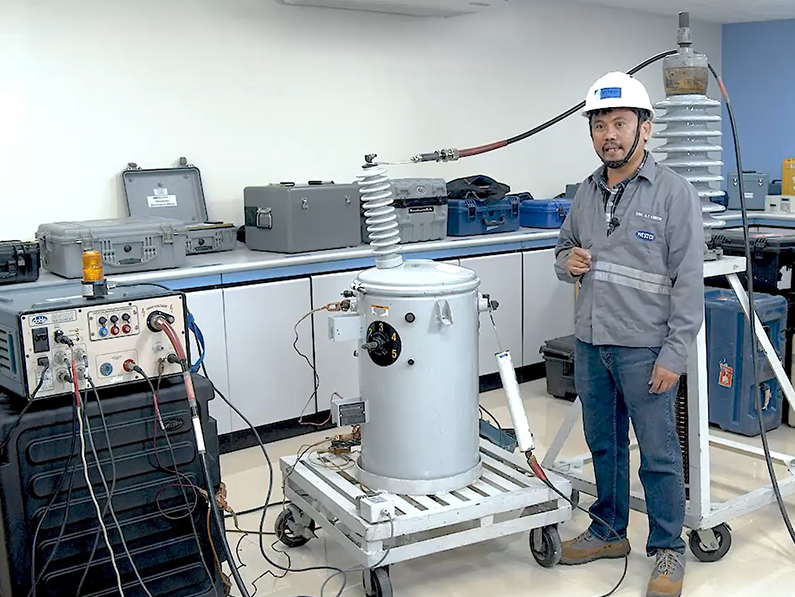

  • A man wearing a hard hat is standing in front of a machine.

    Slide title

    Write your caption here
    Button

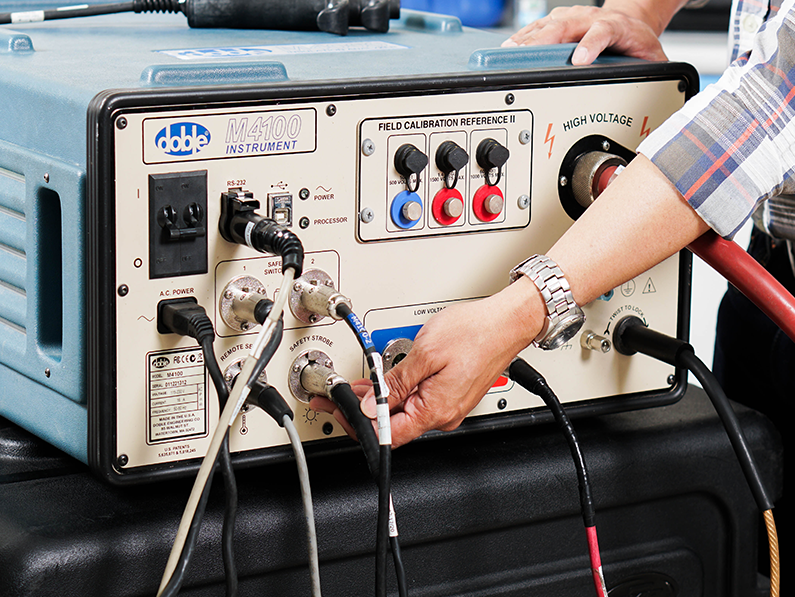

  • A person is plugging wires into a device that says ' high voltage ' on it

    Slide title

    Write your caption here
    Button

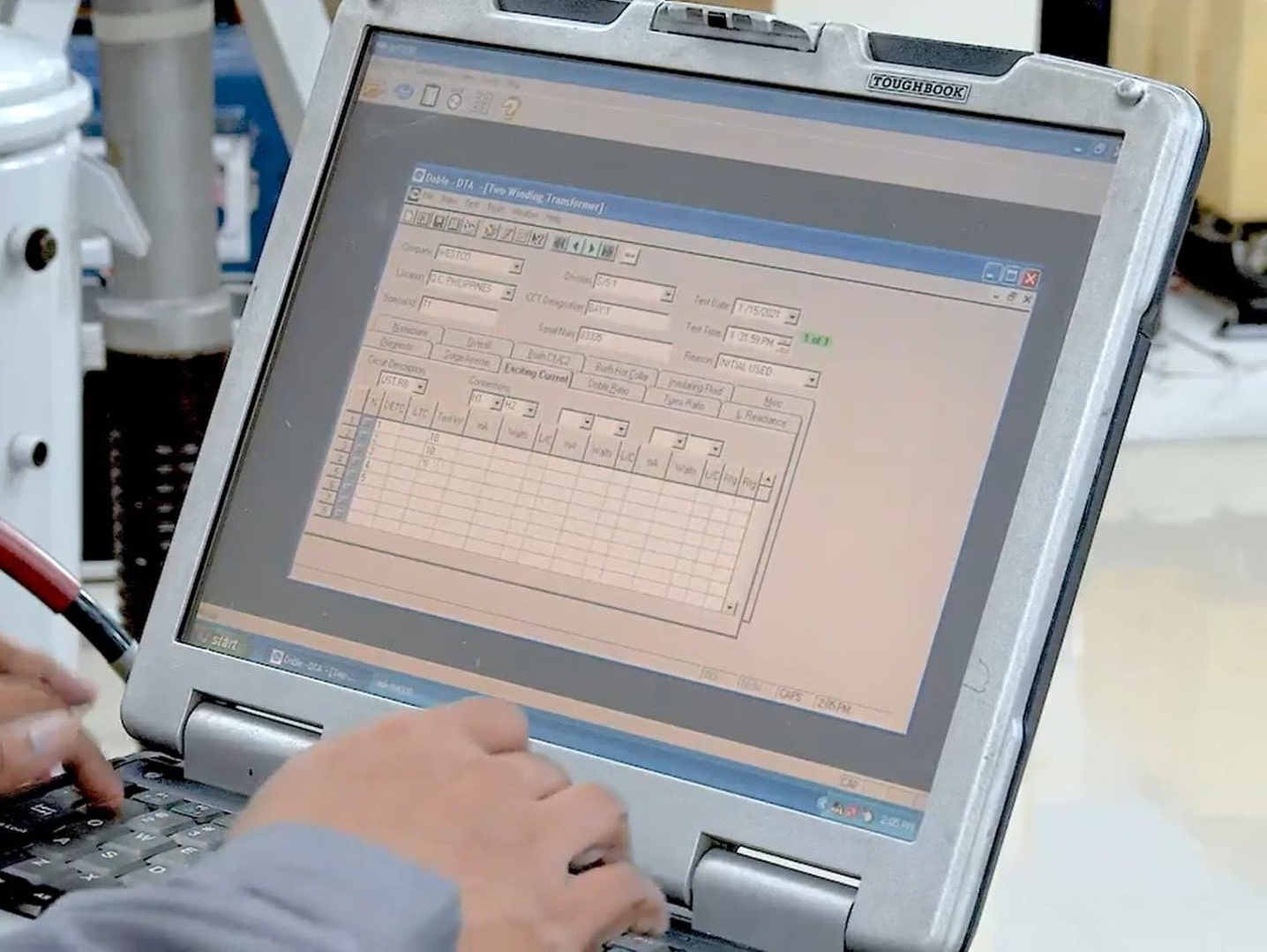

  • A person is typing on a laptop that says ' sharp ' on it

    Slide title

    Write your caption here
    Button

  • OVERVIEW

    The course is for substation maintenance staff or less experienced in power transformer testing, or an experienced maintenance technical staff.  This program will also cater to advanced test engineer to learn new concepts in power transformer testing, oil recycling or oil filtering concept, and basic results interpretation. The course will also focus on issues related to causes of bushing breakdown, arresters, oil, impedance, leakage reactance and most of all short circuits rating a transformer can withstand.

  • WHY JOIN?

    Gain the skills to detect insulation aging and early signs of equipment failure, minimize downtime, and improve system reliability. Whether you're in maintenance, testing, or power system management—this training is a must!

  • LEARNING OBJECTIVES

    At the end of the program, the participants will be able to:

    • Discuss basic transformer fundamentals.
    • Understand the latest transformer technology.
    • Discuss making of a transformer.
    • Enumerate basic oil and transformer testing methodology protocol.
    • Identify and solve concerns of on-the-job practices.
    • Discuss equipment application.
    • Demonstrate actual IPF methodology and testing procedures.

  • TOPICS TO BE DISCUSSED

    We kick off with the fundamentals of transformers, followed by an introduction to Insulation Power Factor (IPF)—its theory, applications, and the standard procedures used in testing insulation health.

    • Transformer Theoretical Basics
    • Dissolved Gas Analysis and Oil Quality Test
    • Insulation Power Factor Theory and Application
    • Significant Field Testing for Transformers

  • RESOURCE PERSON 1

    Engr. Eduardo Pabuna Jr., PEE

    Assistant Vice President - Engineering Solutions

    Westco Electrical & Equipment Corp.


    He has 25 years of accumulated experience in Condition Base and Preventive Maintenance Testing, Power Systems Protection, Electrical System Design and Analysis, Electrical Safety and Technical Sales.

  • RESOURCE PERSON 2

    Engr. Alex Castro, PEE

    Assistant Vice President – Engineering Services

    Westco Electrical & Equipment Corp.


    Engr. Castro graduated Bachelor of Science in Electrical Engineering from Technological Institute of the Philippines.  He attended trainings on Variable Frequency Drive Control Methods & Applications, Condition Assessment of Electrical Equipment, Power Circuit Breaker Testing & Maintenance.


    Some of his achievements in the field are Online bushing monitoring of two (2) units Power Transformer in XIAN ELECTRIC & NGCP (SUBA & AMLAN) substations), Comprehensive Transformer Testing with Dissolved Gas Analysis and comprehensive oil test of 3.75 MVA, 3 phase Power Transformer in Wyeth, Philippines.


    Engr. Castro's exposure to testing of substation apparatus, made him an expert in the field; such as power transformers, potential transformers, current transformers, circuit breakers, disconnect switches and surge arresters equip him with the technical knowledge and experience to share in his seminars.

  • REQUIREMENTS

    • No strict requirements required.
    • Open to Electrical Engineers, Registered Master Electricians, Electrical Technicians, Maintenance Personnel, Testing and Commissioning Engineers, Engineering Students, and individuals involved in power systems and transformer maintenance.
    • Basic knowledge of electrical systems and transformer operation is an advantage but not mandatory.

  • TRAINING INCLUSIONS

    • Certificate of Attendance
    • E-Handouts
    • Meals (for in-person training)
    • Earn CPD Points for ELECTRICAL ENGINEERING COUNCIL

This program is accredited by:
